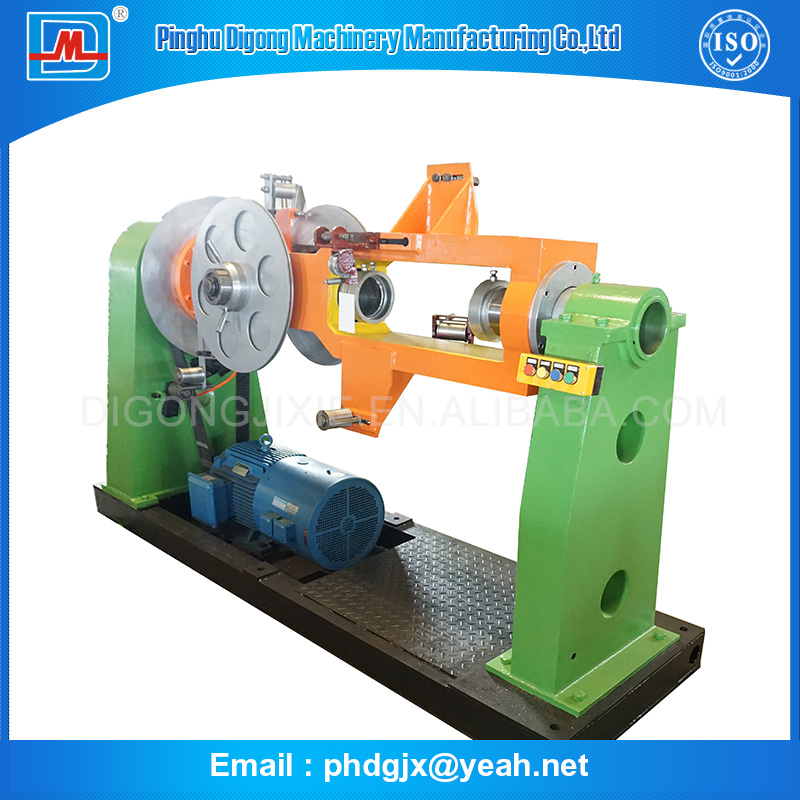

cable armoring production line - 630mm high speed steel strip armoring machine

Pinghu Digong

φ630 High Speed

Horizontal Type Semi-tangent Cable Taping Machine

一、Application：

Mainly used for steel tape armoring of various type of cables.

二、Componse：

1	φ2000 shaft-less pay-off stand	1 set
2	well-shaped wire guiding stand	1 set
3	horizontal meter counter	1 set
4	φ400/2 common taping head (11 kw variable frequency motor)	1 set
5	φ630/2 steel taping head(18.5kw variable frequency motor)	1 set
6	1250kg caterpillar traction device(7.5kw variable frequency motor)	1 set
7	φ2000 shaft-less take-up and traversing stand	1 set
8	electronic control and safety protection device	1 set

三、Technology data：

1、maximum cable diameter of armoring:                    φ50mm

2、maximum taping speed:                                         450r/min

3、taping pitch:                                                            step-less

4、maximum ratating speed of armoring:                      380r/min

5、armoring pitch:                                                        step-less

6、maximum haul-off force:                                            1250kg

7、linear speed：                                                          35m/min

8、pay-off reel stand：                                             PN1250-PN2000

9、take-up reel stand:                                               PN1250-PN2000

10、motor of steel taping head:                                     18.5kw

11、motor of taping head: 11kw

12、haul-off motor：                                                       7.5kw

13、central height： 1000mm

四、Main pictures：
