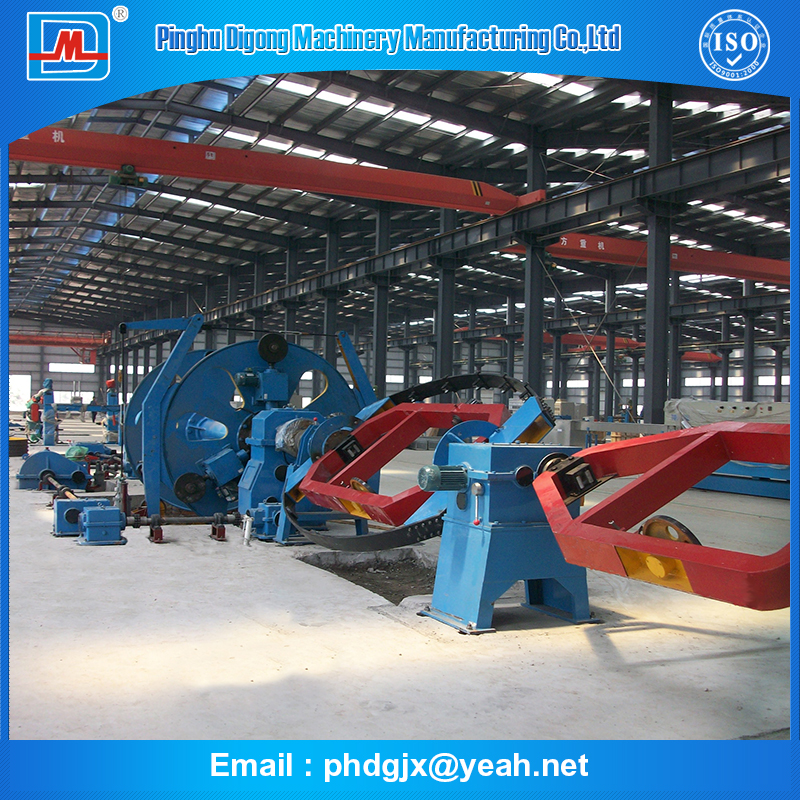

Mainly used for cabling and armoring of various kinds of round and  sector shaped cables such as three-core, four-core, fiver-core and “4+1”core,“3+2”core.

1. 1＋1 real bow type stranding cage                   1set

2. Φ1250/3B stranding cage                 1set

3. Dual die holder                             1set

4. 30kw variable frequency motorand main drive gearbox system 1set

5. Φ400/2common taping head(with shared base）    1set

6. Φ630/2semi-tangent steel taping head(with shared base）  1set

7. Horizontal meter counter                                   1set

8. Φ2000 single capstan wheel with standard 27-step gearbox        1set

9. Φ2500shaft-less take-up and traversing                        1set

10. Electrical control system、transmission system, safety protection system and foundation bolt    1set

1. Maximum diameter for cabling：               Φ80mm

2. Rotating speed                                     14.11～33.62r/min

3. Laying-up pitch                                       293～3121mm

4. Lapping speed：                         188～419r/min

5. Taping pitch：                             24～234mm

6. Steel tape speed：                         161～369r/min

7. Steel tape pitch：                         27～273mm

8. Linear speed ：                           9.85～44.04 m/min

9. Real cradle：                                PN1250/1+1B

10.Specification of cradle in cage：                PN1250/3B

11.Take-up bobbin size：                       PN1250～PN2500

12.Main motor power：               30KW   variable frequency motor

13.Central height：                              1000mm
